3-cell UHV Evaporator TCE-SC

The TCE-SC evaporator is equipped with a shutter and a cooling tank.

This version is firmly mounted to the UHV-Chamber but can easily be upgraded by a z-travel unit.

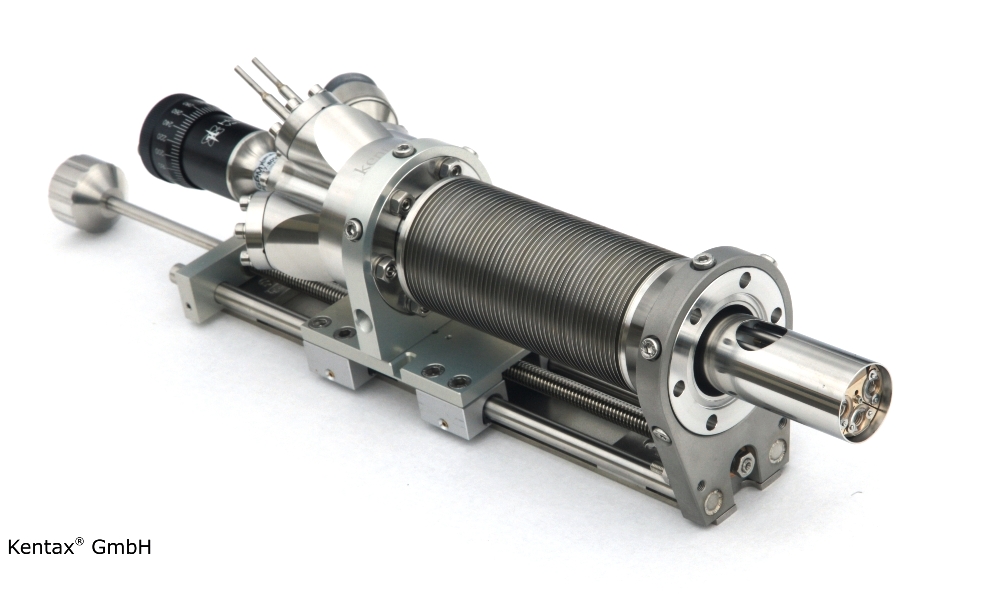

3-cell UHV Evaporator TCE-BSC

The 3-cell evaporator with cooling (water or liquid nitrogen) is the most ordered evaporator of Kentax (shown here without shutter).

Features:

• 3 independent and separately controllable evaporation cells
• very low power consumption (for example: 3.7 W for holding a temperature of 350 °C)
• cooling tank (water or LN₂)
• integrated shutter
• bellows (stroke: 170 mm) for variable distance to the sample and crucible exchange without breaking the system vacuum
  (additionally one angle and one gate valve necessary)
• also available with modified stroke (50 mm < 300 mm) and tube length to obtain an optimal crucible-sample distance
• NW CF38 - CF40 mounting flange

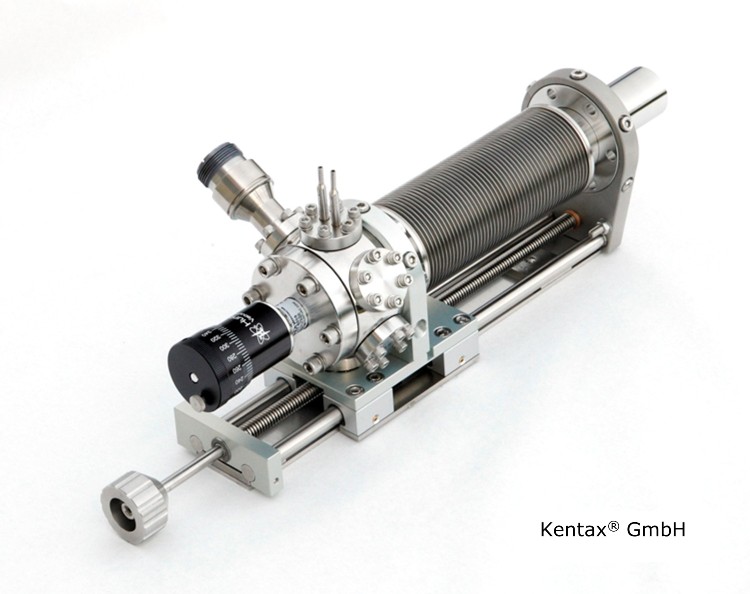

• also available as short version (total length 380mm instead of 426mm)

Data sheets

The following data sheets show temperature curves of one driven heater element whereas the other two elements are not heated but recorded in their temperature. From these diagrams you can see how long a crucible can be heated before the neighboring crucible (with its material) reaches the maximum allowed temperature.

The curves also show that if preparation cycles are finished within 5-10 min, you need not any cooling of the cryostat in most cases of material choice. For example, the neighboring crucible No. 2 rises in temperature to 85°C if heater No. 1 is heated to 350 °C for 30 minutes without cooling flow (second diagram and fourth single diagram below).

Note: Without cooling, there was still an ongoing increase in temperature a few minutes after heating of the crucible had been stopped.

When using water for cooling (about 0.1l/min) you don't have this effect (see first diagram).

with cooling
  without cooling

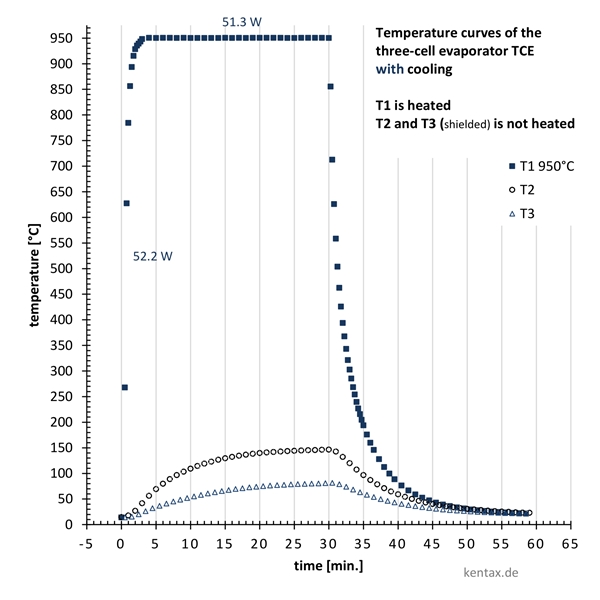

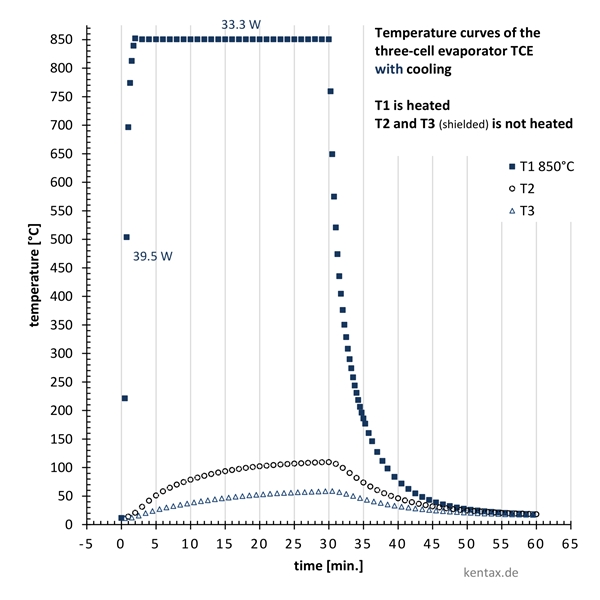

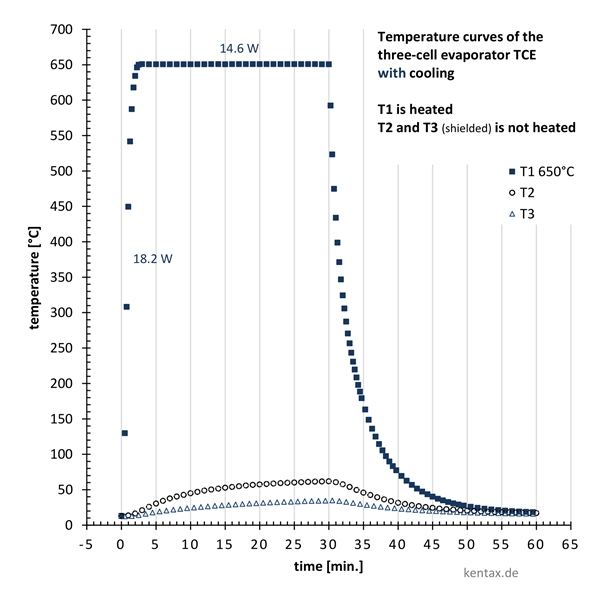

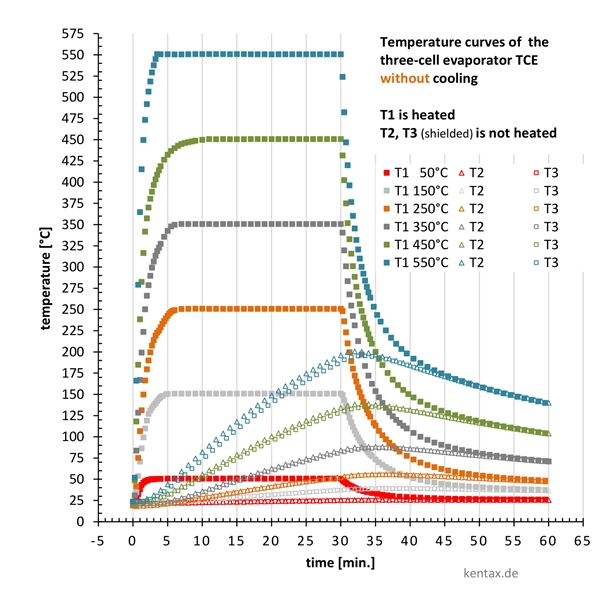

Temperature curves from 50 - 950 °C cooled (left diagram) and uncooled (right diagram). For operation at high temperatures (850°C, 950°C) we recommend the evaporator with additional internal shielding.

50 °C
  150 °C
  250 °C
  350 °C
450 °C


  550 °C
  650 °C
  750 °C
  850 °C
  950 °C

Temperature curves cooled/uncooled at different final temperatures from T set value 50 °C, 150 °C , 250 °C, 350 °C, 450 °C, 550 °C and only cooled value 650 °C, 750°C, 850°C and 950°C. Power requirements are reduced by internal shielding (17.7W at 750°C, 24W at 850°C, and 36W at 950°C).

All data sheets in one PDF file: data-sheets-kentax.pdf (new window)
